Renown Traditional Tile Slate Grey from BMI Redland | Swansea
Product Code: RENOWN1/SLGR/1501

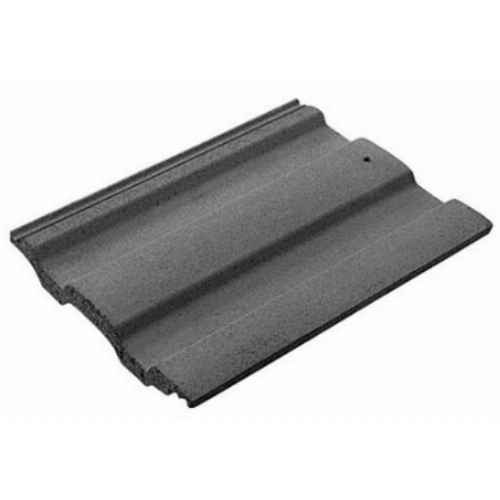

Renown Tile Traditional Slate Grey
A neat low-profile tile with a more contemporary feel and a square-edged profile that comes in a variety of through coloured and granular finishes.
Designed to blend unobtrusively into any environment, Renown is easy and quick to cut and fix, making it ideal for shorter lead time new build or refurbishment.
Key Advantages
- Eight colours to provide a match with every regional roofing style: Antique Red, Breckland Brown, Brown Granular, Cotswold Granular, Farmhouse Red, Slate Grey, Terracotta and Tudor Brown.
- Exceptional wind and driving rain performance
- Quicker installation saves time and money
Authority
Renown Tiles conform to BS EN 490: 2011 Concrete roofing tiles and fittings for roof covering and wall cladding - Product Specifications.
Performance
Renown Tiles have been rigorously tested in the Group wind tunnel where combinations of high wind and driving rain are used to determine the tile performance with respect to wind loading and weathertightness. Tiles will meet all the requirements of BS 5534: 2014 Code of practice for slating and tiling (including shingles), providing Redland fixing recommendations are complied with.
|
TECHNICAL DATA |
|
|
Size (overall) |
418 x 330mm |
|
Minimum Pitch and Headlap |
|
|
Through coloured 17.5° at 100mm headlap / 22.5° at 75mm headlap |
|
|
Granular 22.5° at 100mm headlap / 30° at 75mm headlap |
|
|
Maximum Pitch (subject to fixing specification) |
90° |
|
Maximum Headlap |
125mm |
|
Minimum Gauge/Batten Spacing |
293mm |
|
Maximum Gauge/Batten Spacing |
|
|
Through coloured below 22.5° at 318mm / 17.5° and over 343mm |
|
|
Granular below 30° at 318mm / 30° and over 343mm |
|
|
Hanging Length (approx.) |
397mm |
|
Cover (all figures are net and do not allow for wastage) |
|
|
Linear cover of 1 tile |
300mm |
|
Covering capacity 10.5 tiles/m2 at 318mm gauge / 9.7 tiles/m2 at 343mm gauge |
|
|
Weight 44kg/m2 at 318mm gauge / 41kg/m2 at 343mm gauge |
|
|
per pallet, including pallet (approx.) |
1.06 tonnes |
|
per 1000 |
4.20 tonnes |
|
Battens Required (at max. gauge) |
2.92m/m2 |
|
Batten Size |
|
|
Rafter centres up to 450mm |
38 x 25mm |
|
Rafter centres up to 600mm |
50 x 25mm |
|
Fixing Clips |
Eaves, Verge & Tile Clips |
|
Nail Size for Tiles# |
50 x 3.35mm (A/A) |
|
Pallet Quantities Tiles per pallet 240 / Tiles per pack 40 / Packs per pallet 6 |
|
|
#(A/A) Aluminium Alloy |
|
